The FX series leads the industry in brushed competition performance. With its ultra-small footprint and flash-programmable microcontrollers with the lowest on-resistance MOSFETS ever used in a speed controller, the FX completely eliminates any power bottleneck between your battery and motor, increasing efficiency and breathing new life into your brushed motors. The FX has thousands of possible settings right on-board with Tekin's QuickTune™ Programming and is also capable of extensive tuning and updates when used with Tekin's HotWire PC Interface (sold separately).
The FX-R reversing speed controller leads the industry in pure rock crawling performance. With its tiny footprint, improved drag brake resolution with lock-down holding power, adjustable reverse type with reverse delay, no reverse or instant reverse, ultra smooth low speed creep and precision throttle and braking response, the FX-R easily gives you the edge over the competition. The FX-R has thousands of possible settings right on-board with Tekin's QuickTune™ Programming and is capable of extensive tuning and updating when used with Tekin's HotWire PC Interface*. The FX-R can also take on your power needs with 3S Li-Po compatibility when used with 30-turn or higher motors. Install the FX-R and step up to smarter, smaller, faster electronics. And if you have an older FX-R you can download the latest software updates with our HotWire interface.
FX
FX-R
FX PRO
FX-R PRO
Controls: Forward/Brake
Input Voltage: 2S-3S LiPo / 4-9S NiMH-NiCD
Motor Limit 2S: 10T Brushed 540
Motor Limit 3S: 30T Brushed 540 Crawler
Max Current: 208amps*
ON Resistance: .00015ohms*
BEC: 6.0v @ 3amps
Dimensions: 1.1 x 0.80 x 0.40" / 28 x 20 x 10mm
Weight: 0.63oz / 18g
*per manufacturer specs
Controls: Forward/Brake/Reverse
Input Voltage: 2S-3S LiPo / 4-9S NiMH-NiCD
Motor Limit 2S: 12T Brushed 540
Motor Limit 3S: 30T Brushed 540 Crawler
Max Current: 105amps*
ON Resistance: .0006ohms*
BEC: 6.0v @ 3amps **External BEC needed for 3S**
Dimensions: 1.1 x 0.80 x 0.40" / 28 x 20 x 10mm
Weight: 0.63oz / 18g
*per manufacturer specs
Controls: Forward/Brake
Input Voltage: 2S-3S LiPo / 4-9S NiMH-NiCD
Motor Limit 2S: 6T Brushed 540
Motor Limit 3S: 30T Brushed 540 Crawler
Max Current: 416amps*
ON Resistance: .000075ohms*
BEC: 6.0v @ 3amps
Dimensions: 1.1 x 0.80 x 0.60" / 28 x 20 x 15.25mm
Weight: 0.86oz / 24.5g
*per manufacturer specs
Controls: Forward/Brake/Reverse
Input Voltage: 2S-3S LiPo / 4-9S NiMH-NiCD
Motor Limit 2S: 10T Brushed 540
Motor Limit 3S: 30T Brushed 540 Crawler
Max Current: 210amps*
ON Resistance: .0003ohms*
BEC: 6.0v @ 3amps **External BEC needed for 3S**
Dimensions: 1.1 x 0.80 x 0.60" / 28 x 20 x 15.25mm
Weight: 0.86oz / 24.5g
*per manufacturer specs
QuickTune™ Programming
One-Touch Radio Calibration
Easily Access Programming, Anywhere, Anytime
HotWire for Advanced Programming and Updates
On-Board Temperature Indicator
Gold-plated Solder Posts for Easy Wire Replacement
Self Test Diagnostics with Error Codes
Fully Proportional Forward/Brake/Reverse
LiPo Safe with Custom Voltage Cutoffs
DGF2: Digital Glitch Filtering V2
HDAC: High Density Copper PCB's
Ultra-smooth and Precise Throttle and Braking Control
* requires HotWire™ sold separately.
ON BOARD QuickTune™ PROGRAMMABLE FEATURES DB - Drag Brake (13 steps)
BS - Brake Strength (13 steps)
LM - Torque Limiter (7 steps)
NW - Neutral Width (13 steps)
TP - Throttle Profiles 5 Preset - 2 Custom*
RT - Reverse Type
Brushed Modes - FWD Only / FWD-REV / FWD-REV Delay
VC - Voltage Cutoff : 2S, 3S, Custom*
* requires HotWire™ sold separately.
HOTWIRE™ PROGRAMMABLE FEATURES Update ESC Firmware Drag Brake (0-100 steps) <<video>>
Brake Strength (0-100 steps) <<video>> Brake Profile (5 preset, 2 Custom) Throttle Minimum (0-20 steps) <<video>>
Throttle Profile (5 preset, 2 Custom)
Torque Limiter (0-10 steps) <<video>> Reverse Speed (0-100 steps)
Reverse Delay (0-2seconds)
Neutral Width (0-100 steps) <<video>> Push Control (0-100 steps) <<video>>
Reverse Type <<video>>
Brushed Modes - FWD Only / FWD-REV / FWD-REV Delay
Voltage Cutoff - 2S, Custom Per Cell <<video>>
ESC ONLY
TT1090 - FX
TT1091 - FX-R
TT1092 - FX PRO
TT1093 - FX-R PRO
FX-R Rock Crawling Systems

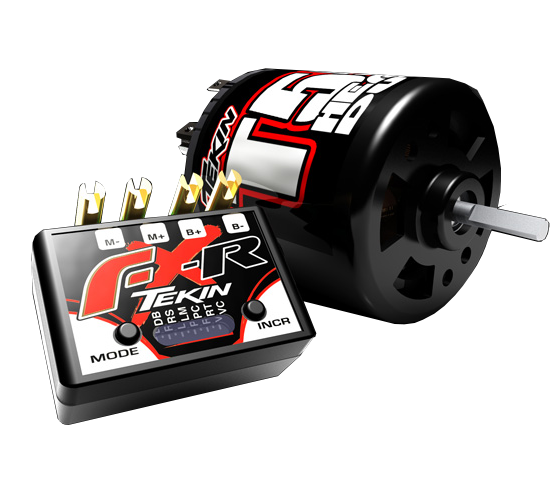

TT2107 - FX-R + T55 HD Brushed Motor
TT2108 - FX-R + T45 HD Brushed Motor
TT2109 - FX-R + T35 HD Brushed Motor

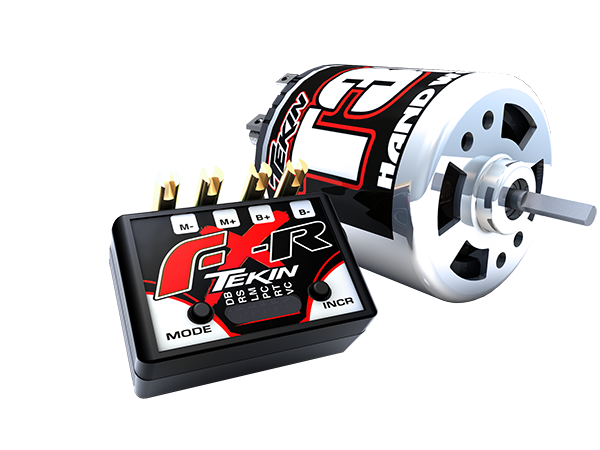

TT2099 - FX-R + T40 Pro Hand Wound Brushed Motor
TT2100 - FX-R + T30 Pro Hand Wound Brushed Motor
HOTWIRE
TT1451 - HotWire 2.0
ESC CASE KITS
TT3818 - FX Case
TT3819 - FX-R Case
TT3820 - FX Pro Case
TT3821 - FX-R Pro Case
CABLES
TT3806 - Tekin Power Switch
TT3807 - JR Servo Plug 250mm
CAPACITORS
TT3520 - Power Cap 16V 330uf (2)
TT3522 - Power Cap 16V 1000uf
