Input Voltage: 2S - All

                       3S - 10.5 and up

Weight: 161g / 5.7oz

Shaft Dimensions: 3.2mm (1/8") x 15.3mm

Motor Diameter: 35.85mm / 1.40"

Motor Length: 50mm / 1.909"

Bearing Dimensions: Front: 4x13x5mm / Rear: 1/8x3/8x5/32"

Rotor Size: 12.3mm - 25.5T

                   12.5mm - 21.5T rpm* / 17.5T rpm / 13.5T rpm / 21.5T / 17.5T / 13.5T / 10.5T / 9.5T / 8.5T

                   13mm - 7.5T / 6.5T / 5.5T / 4.5T / 4T / 3.5T / 2.5T

                   13mm Torque - 3.5T / 2.5T

Rebuildable: Yes



*RPM = High RPM On Road Version



CNC Machined 6061-T6 Billet Aluminum Heat Sink Can

Neodymium Sintered Magnet

Precision Engineered for Maximum Energy Conversion

High Purity Copper Windings Maximize Conductivity

Low Resistance, High Power Solder Tabs

Dual-Plug Sensor Wire Harness for all Sensored and Sensorless systems

Anodized End-bell plates maximize corrosion and wear resistance

High RPM Precision Bearings

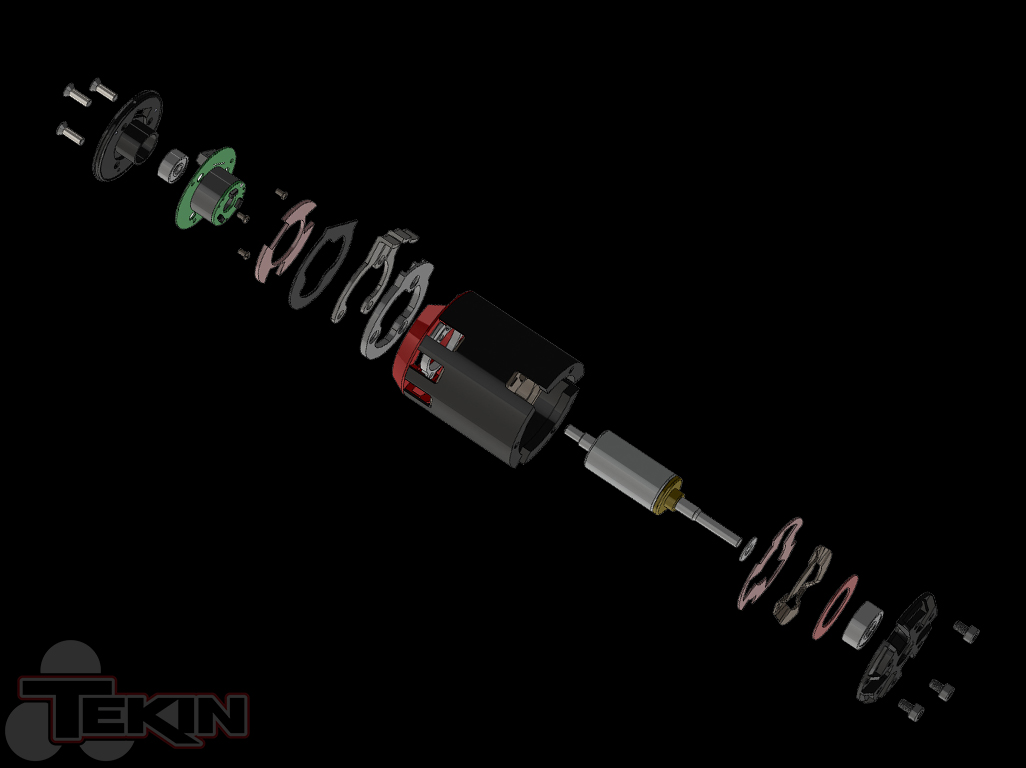

Rebuild-able Design

Solder-less Sensor PCB replacement

Adjustable Timing

Standard and RPM versions

















MOTOR ONLY



TT2701 - GEN3 25.5T

TT2702 - GEN3 21.5T RPM

TT2703 - GEN3 21.5T

TT2704 - GEN3 17.5T RPM

TT2705 - GEN3 17.5T

TT2706 - GEN3 13.5T RPM

TT2707 - GEN3 13.5T

TT2708 - GEN3 10.5T

TT2709 - GEN3 9.5T

TT2710 - GEN3 8.5T

TT2711 - GEN3 7.5T

TT2712 - GEN3 6.5T

TT2713 - GEN3 5.5T

TT2714 - GEN3 5T

TT2715 - GEN3 4.5T

TT2716 - GEN3 3.5T

TT2717 - GEN3 2.5T

RS SPEC SYSTEMS



TT2740 - RS SPEC + GEN3 21.5T RPM

TT2741 - RS SPEC + GEN3 21.5T

TT2742 - RS SPEC + GEN3 17.5T RPM

TT2743 - RS SPEC + GEN3 17.5T

TT2744 - RS SPEC + GEN3 13.5T RPM

TT2745 - RS SPEC + GEN3 13.5T

RS GEN2 SYSTEMS



TT2730 - RS GEN2 + GEN3 21.5T RPM

TT2731 - RS GEN2 + GEN3 21.5T

TT2732 - RS GEN2 + GEN3 17.5T RPM

TT2733 - RS GEN2 + GEN3 17.5T

TT2734 - RS GEN2 + GEN3 13.5T RPM

TT2735 - RS GEN2 + GEN3 13.5T

TT2736 - RS GEN2 + GEN3 10.5T

TT2737 - RS GEN2 + GEN3 9.5T

TT2738 - RS GEN2 + GEN3 8.5T

RSX SYSTEMS



TT2750 - RSX + GEN3 8.5T

TT2751 - RSX + GEN3 7.5T

TT2752 - RSX + GEN3 6.5T

TT2753 - RSX + GEN3 5.5T

TT2754 - RSX + GEN3 4.5T

TT2755 - RSX + GEN3 3.5T

TT2756 - RSX + GEN3  2.5T

Tuning Rotors


TT2719
12.3mm Spec Rotor - GREY
TT2721
12.5mm Spec Rotor - BLUE

TT2722 12.5mm Spec Rotor Strong - YELLOW

TT2723 13mm Modified Rotor - GREEN

TT2724 13mm HT* Modified Rotor - RED



Bearings



TT2727 - Redline GEN3 Bearing Set - Front: 4x13x5mm / Rear: 1/8x3/8x5/32"



Motor Parts



TT2725 - Redline GEN3 Rebuild Kit: End Caps / Bearings / Solder Tabs / Isolator / Hardware

TT2726 - Redline GEN3 End Caps / Hardware

TT2728 - Redline GEN3 Sensor PCB

TT2729 - Redline GEN3 Solder Tabs / Isolator



* HT = High Torque Option Rotor



Rotors can be easily identified while installed by the color displayed on the end of the shaft at the rear carrier bearing.
