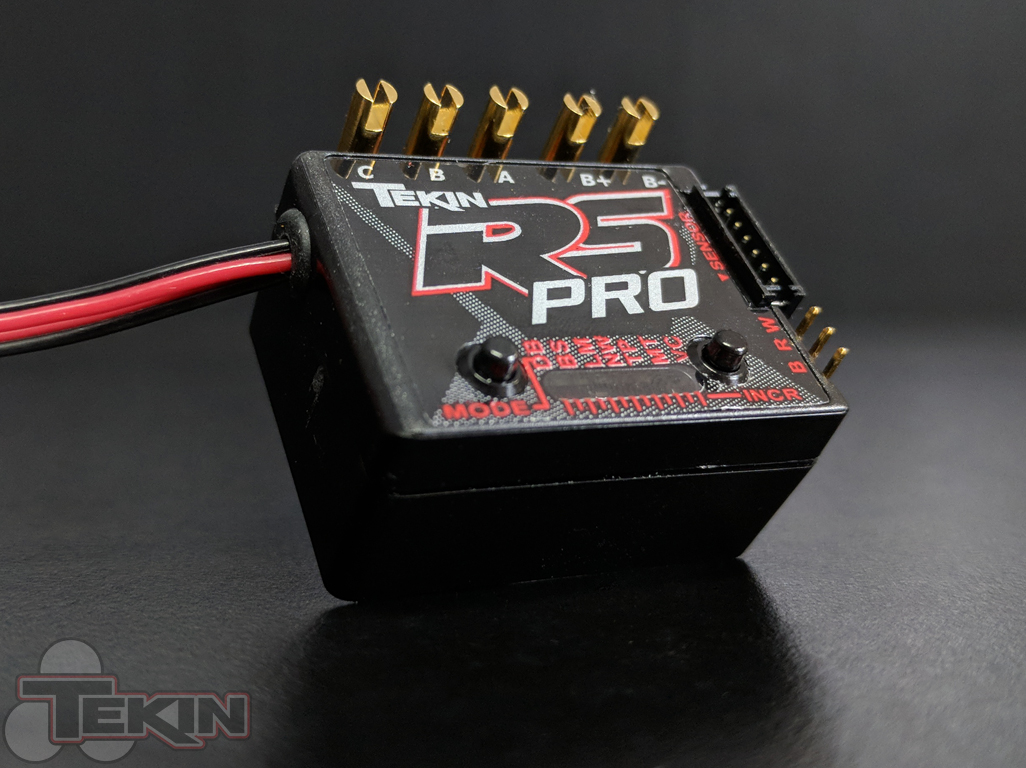

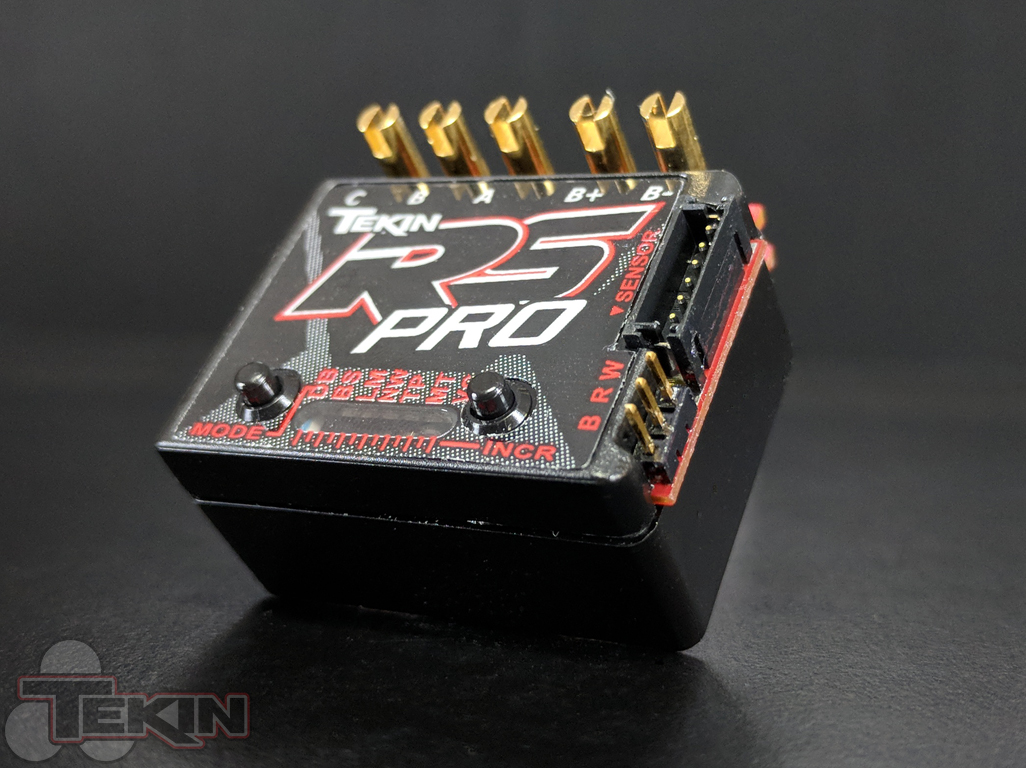

The RS PRO is back! This RS PRO Black Edition utilizes both hardware and software advances recently developed for our latest ESC lineup. With its industry-leading Ultra Low Resistance you can be sure that your motor is getting all the power you can give it. More power, smooth control and reliability you can count on: the RS PRO Black Edition is engineered for performance. Capabilities such as Data Logging and HotWire 3.0 Bluetooth Connectivity allow you fine tune your system and gain an advantage over the competition.

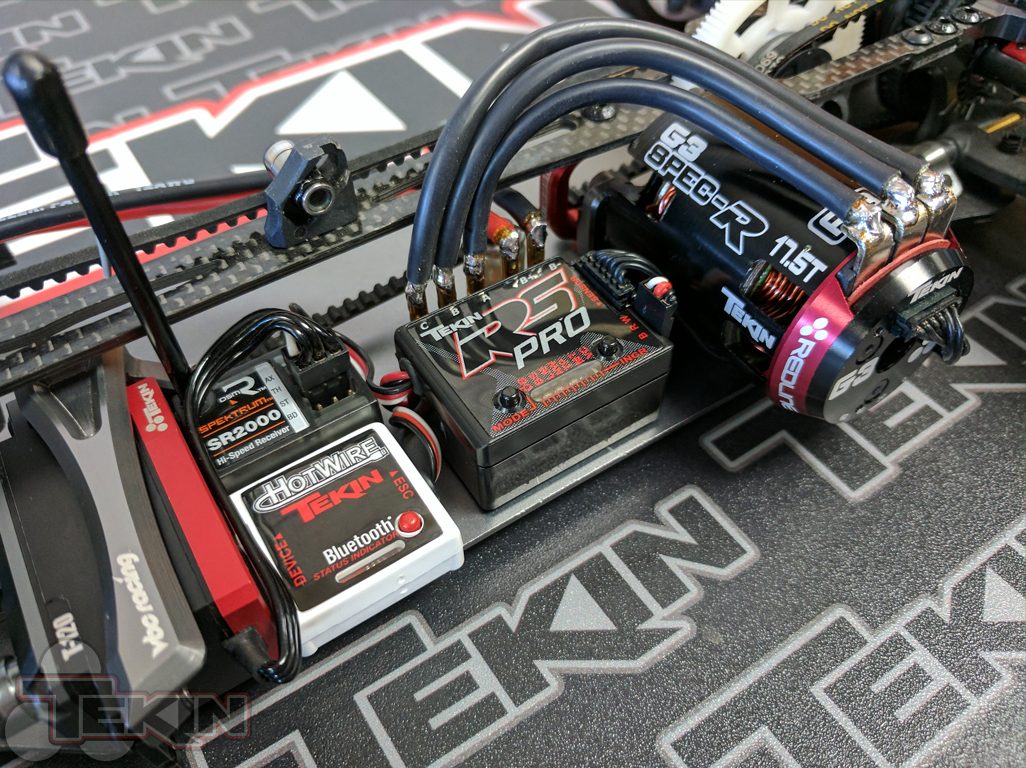

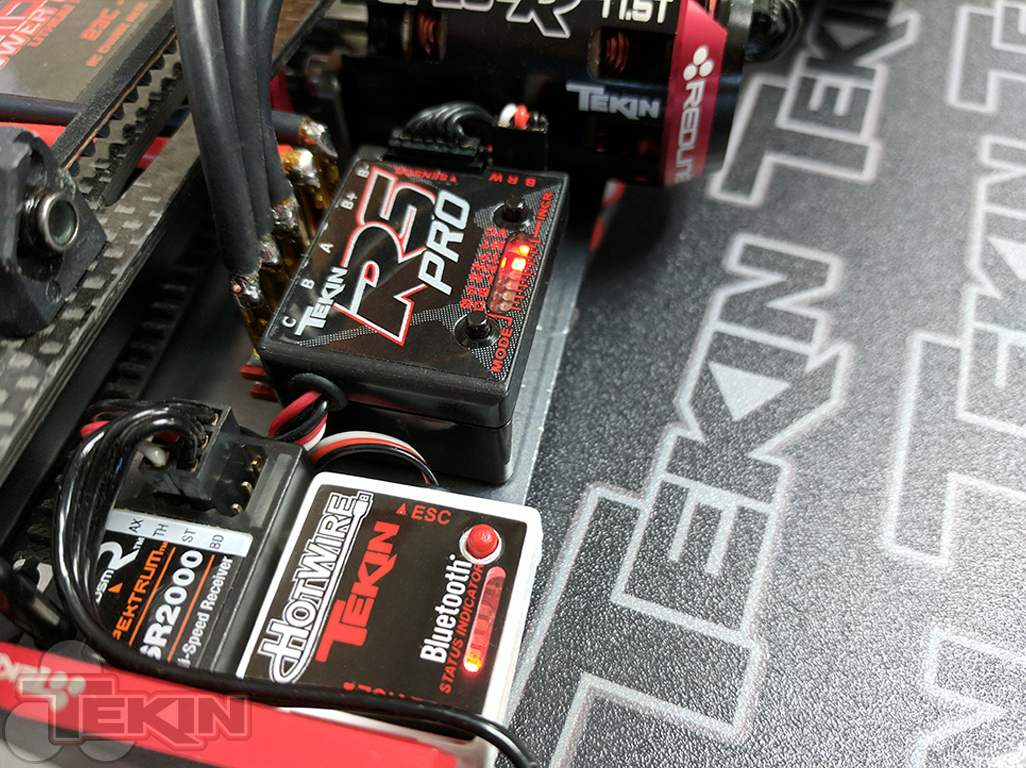

The RS PRO Black Edition was specifically designed for 1S-2S Spec Classes and Drag Racing to take full advantage of the ULR circuit design. ULR FlexWire is included with every Black Edition ESC. Pair the RS PROs with a SPEC-R motor for the ultimate Ultra Low Resistance system.

For 1:10 scale 2WD/4WD Buggy and Stadium Truck and Modified Touring Car we recommend the
RSX Modified ESC as these setups tend to run at higher temperatures. The billet housing and fan shroud on the RSX provide sufficient cooling.





Recommended Spec Applications

















OFF ROAD

1:10 2WD Buggy 17.5T/13.5T

1:10 2WD Truck 17.5T/13.5T

1:10 2WD Short Course 17.5T

1:10 4WD Buggy Spec

ON ROAD

1:12 2WD Pan Car 17.5T/13.5T

1:10 2WD Pan Car 21.5T/17.5T

1:10 World GT

1:10 2WD Formula 1 25.5T/21.5T

1:10 4WD TC 25.5T/21.5T/17.5T
  1S LiPo Classes

OVAL

1:10 2WD 17.5T/13.5T

1:10 SK Car

1:10 Stock Car
  1S LiPo Classes





Controls: Forward/Brake/Reverse

Input Voltage RS Pro : 1-3S LiPo / 4-9S NiMH-NiCD

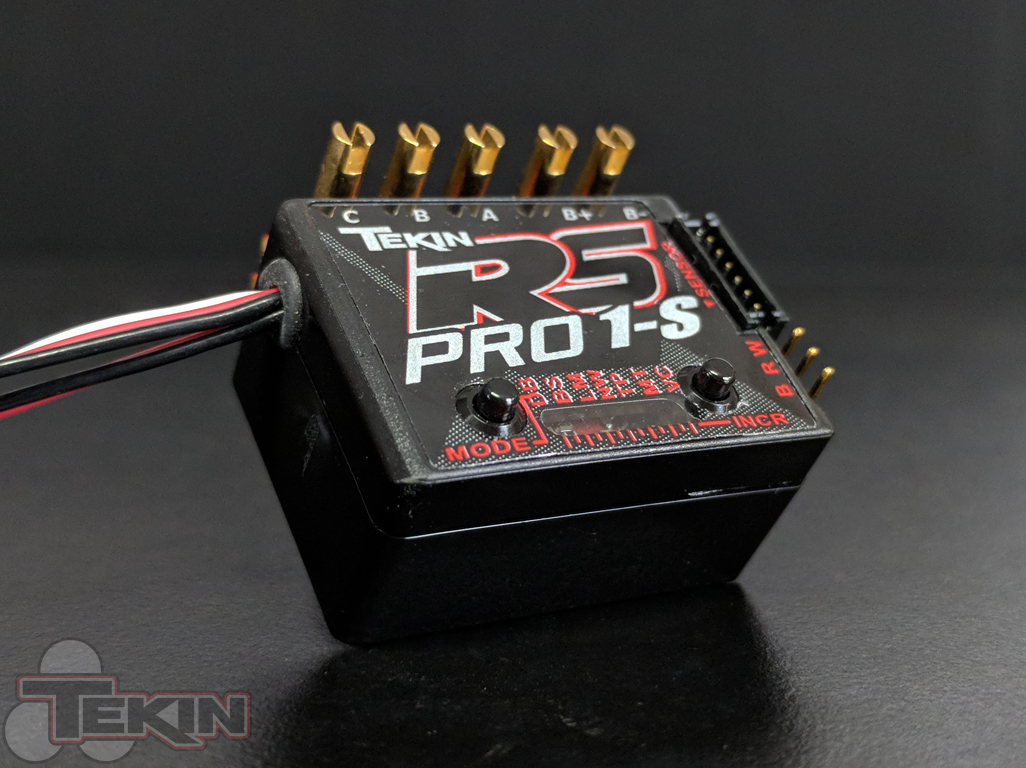

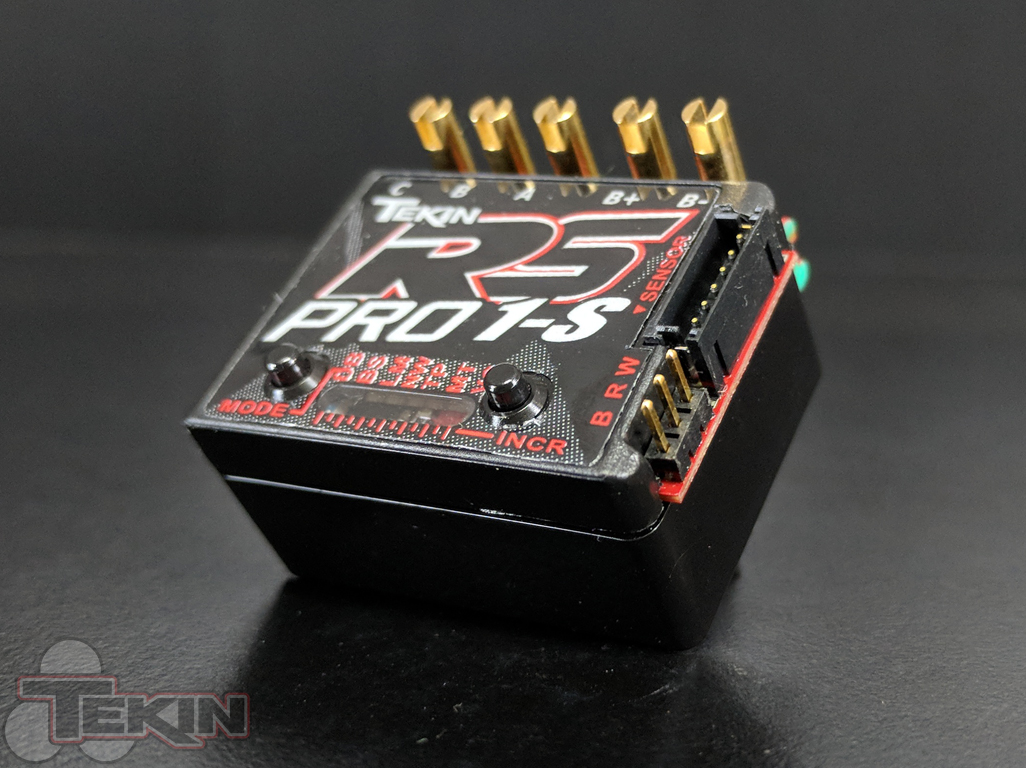

                        RS Pro 1-S: 1S LiPo ONLY / 4S NiMH-NiCD
Motor Limit Brushless Mode 2S: 36mm Can - 2-Pole

Motor Limit Brushless Mode 3S: 36mm Can - 2-Pole

Motor Limit Brushed 2S: 36mm Can - 540 & 550

Motor Limit Brushed 3S: 36mm Can - 540 & 550



Amperage: 480Amps per phase*
ON Resistance: .000096ohm*


BEC: 6.0 / 7.4V @ 5.5amps
Weight: 1.23oz / 35g

Dimensions: 1.0 x 1.3 x .68in / 24.5 x 33 x 17.25mm




*per manufacturer specs

ULR: Ultra Low Resistance Design
Specifically Designed for Spec & Stock Racing
QuickTune™ One Touch Programming

Adjustable Throttle and Brake Frequencies *
High Voltage Programmable BEC *
HotWire™ Programming Port *
Data Logging Capability *
Sensor Checker
On-Board Temperature Indicator

ESC Self Diagnostics with Error Codes
Fully Proportional Forward/Brake/Reverse

Brushless and Brushed Motor Drive

Sensored or Sensorless Operation

LiPo Safe with Custom Voltage Cutoffs

Sensor Plug for Precise Commutation

Lightweight Chassis Design

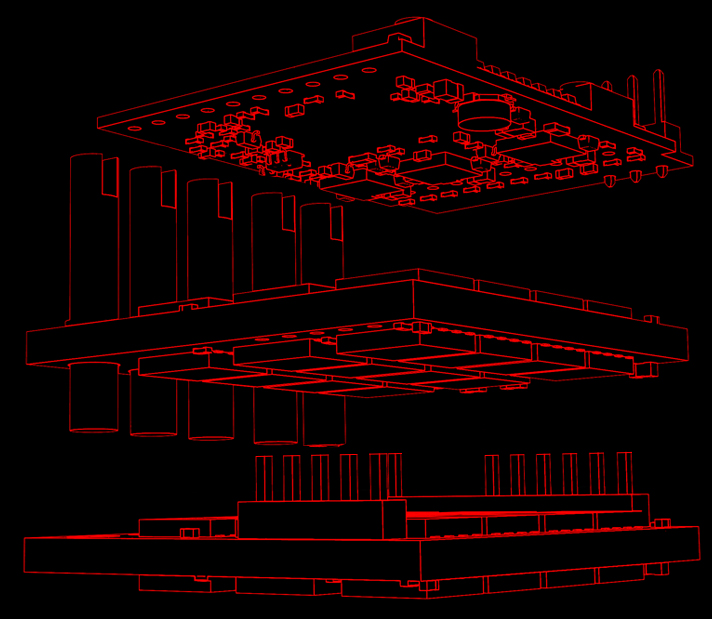

HDAC: High Density Copper PCB's
Ultra-smooth and Precise Throttle and Braking Control


* requires HotWire™ sold separately.

ON BOARD QuickTune™ PROGRAMMABLE FEATURES

DB - Drag Brake (13 steps)

BS - Brake Strength (13 steps)

LM - Torque Limiter (7 steps)

NW - Neutral Width (13 steps)

TP - Timing Profiles 5 Preset - 2 Custom*

MT - Motor Type

Brushless Modes - FWD Only / FWD-REV / FWD-REV Delay / FWD-REV Delay REV Motor Direction

Brushed Modes - FWD Only / FWD-REV / FWD-REV Delay

VC - Voltage Cutoff : RS Pro - 2S, 3S, Custom*
                                       RS Pro 1-S - 1S, Custom*

* requires HotWire™ sold separately.

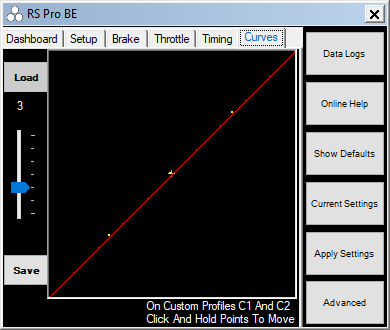

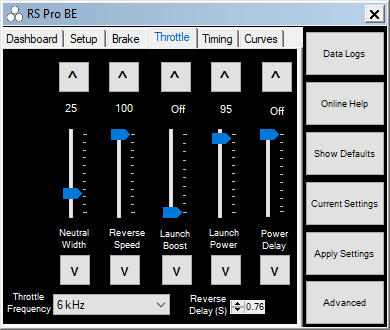

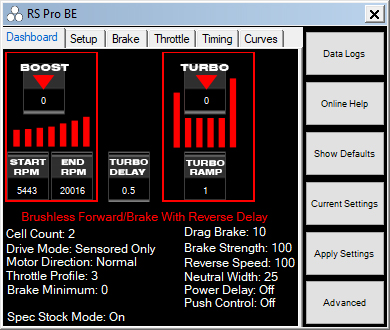

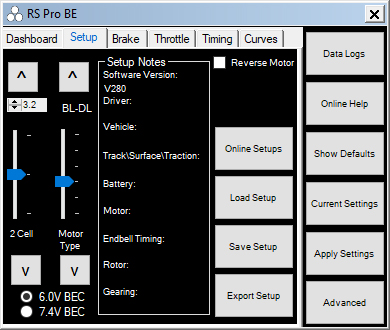

HOTWIRE™ PROGRAMMABLE FEATURES

Update ESC Firmware

Create, Save, Load and Share Custom ESC Profiles

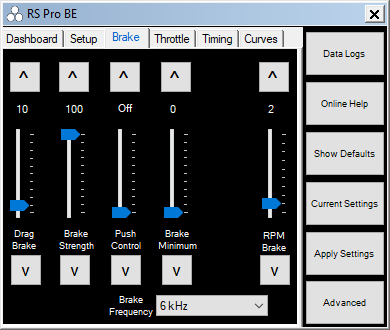

Drag Brake (0-100 steps) <<video>>

Brake Strength (0-100 steps) <<video>>
Brake Minimum (0-30 steps) <<video>>

Active Braking (0-6 steps) <<video>>

Brake Frequency (750hz - 12kHz) <<video>>
Throttle Minimum (0-30 steps) <<video>>

Throttle Frequency (2kHz - 12kHz) <<video>>

Torque Limiter (0-10 steps) <<video>>
Reverse Speed (0-100 steps)

Reverse Delay (0-2seconds)

Neutral Width (0-100 steps) <<video>>
Push Control (0-100 steps) <<video>>

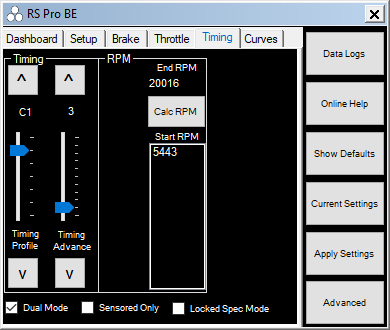

Timing Profiles 5 Preset - 2 Custom <<video>>

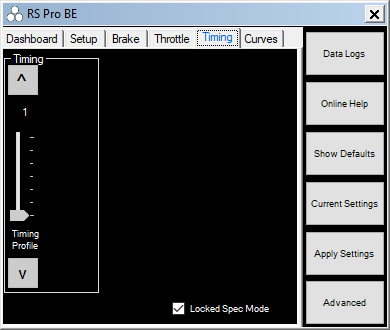

Locked Spec Mode
Boost (0-55 steps)

Boost RPM Range (user programmable)

Turbo (0-50 steps)

Turbo Delay (0-2seconds)

Turbo Ramp (1-10 steps)
Sensored Only Mode
Dual Drive Mode

Motor Type <<video>>

Brushless Modes - FWD Only / FWD-REV / FWD-REV Delay / REV Motor Rotation

Brushed Modes - FWD Only / FWD-REV / FWD-REV Delay

Voltage Cutoff - 2S, 3S, Custom Per Cell <<video>>
1S LiPo Mode

ESC ONLY



TT1160 - RS PRO Black Edition

TT1161 - RS PRO 1S Black Edition


HOTWIRE

TT1451 - HotWire 2.0
TT1452 - HotWire 3.0 BLE









ESC CASE KITS



TT3845- RS PRO Case Kit Black

TT3846- RS PRO 1S Case Kit Black

CABLES



TT3806 - Tekin Power Switch

TT3807 - Receiver Plug 250mm

TT3825 - GEN2 HotWire Adaptor

TT3835 - FlatWire Sensor Cable 100mm

TT3836 - FlatWire Sensor Cable 150mm

TT3837 - FlatWire Sensor Cable 200mm

TT3838 - FlexWire Sleeved Sensor Cable 100mm

TT3839 - FlexWire Sleeved Sensor Cable 150mm

TT3840 - FlexWire Sleeved Sensor Cable 200mm

TT3841 - FlexWire Sleeved Sensor Cable 275mm



CAPACITORS



TT3520 - Power Cap 16V 330uf (2)

TT3522 - Power Cap 16V 1000uf
