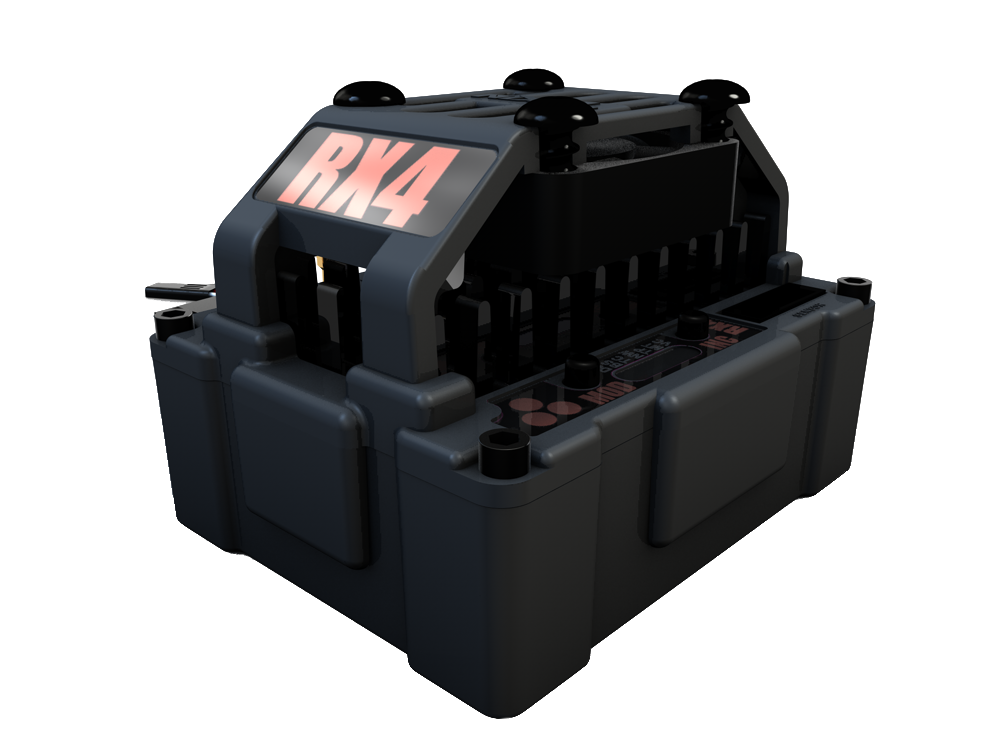

Tekin’s RX4 Brushless Sensored ESC is designed to power your chassis past any obstacle. With massive power handling capabilities, a waterproof* design and all the customization features you’d expect from a Tekin ESC; the RX4 has you covered no matter the situation. Not only reliable, this ESC has a host of built in features like a High Voltage BEC, Drag Brake, Data Logging and the ability to run either Brushed or Brushless motors. The RX4 defines versatility.

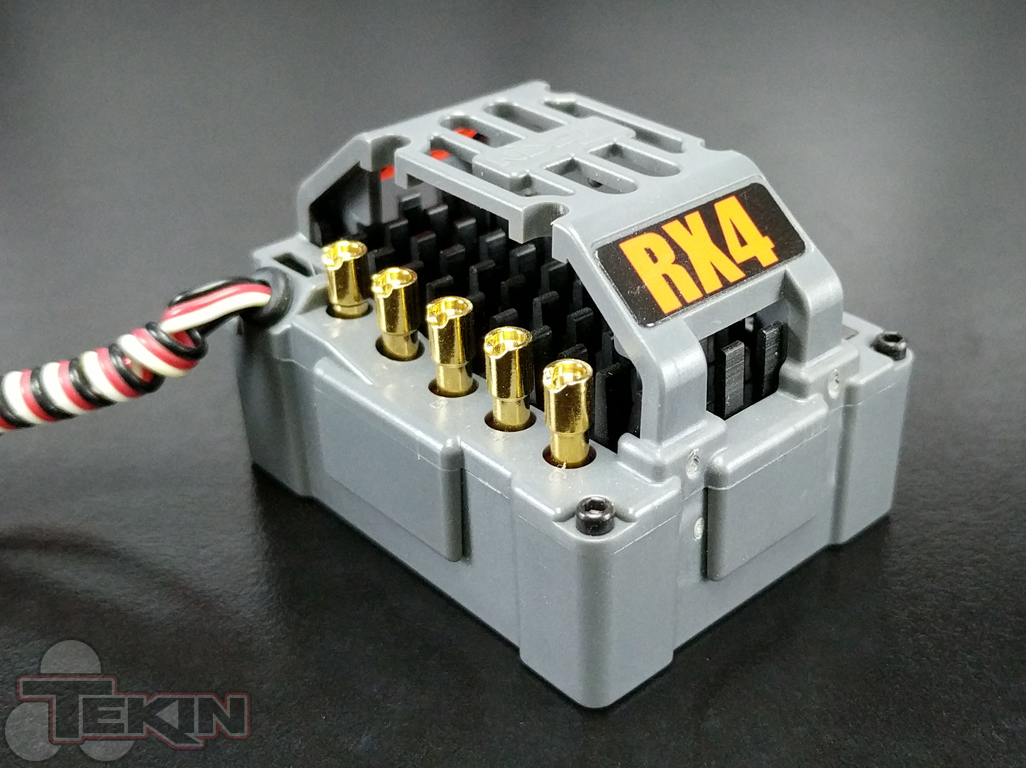

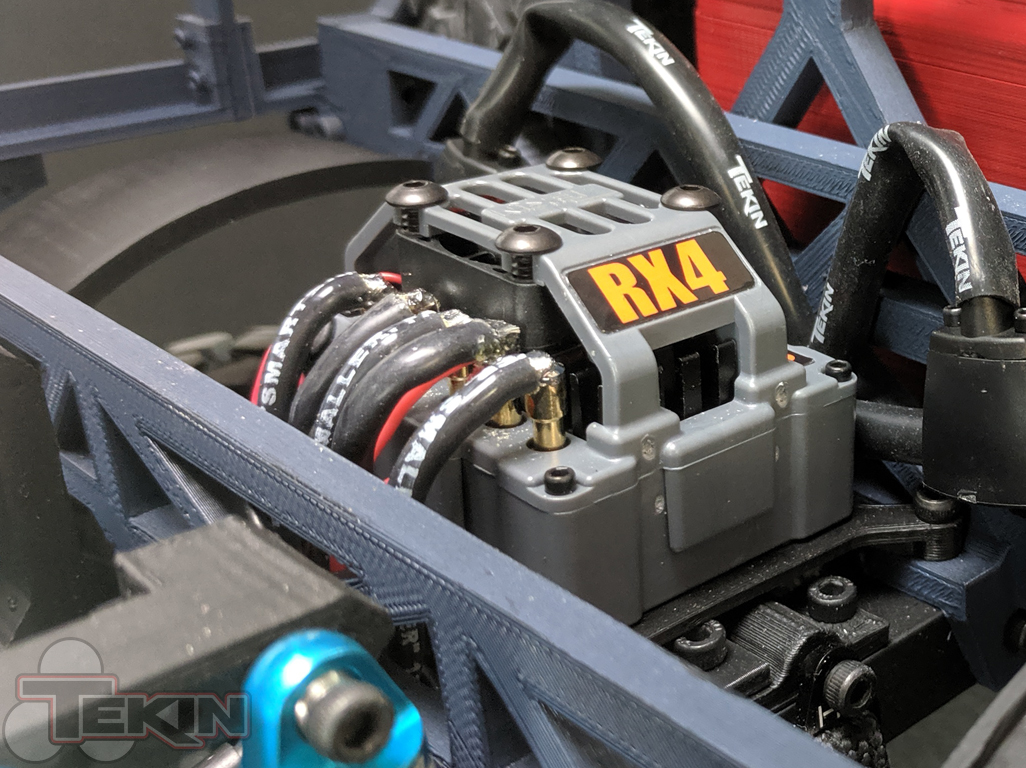

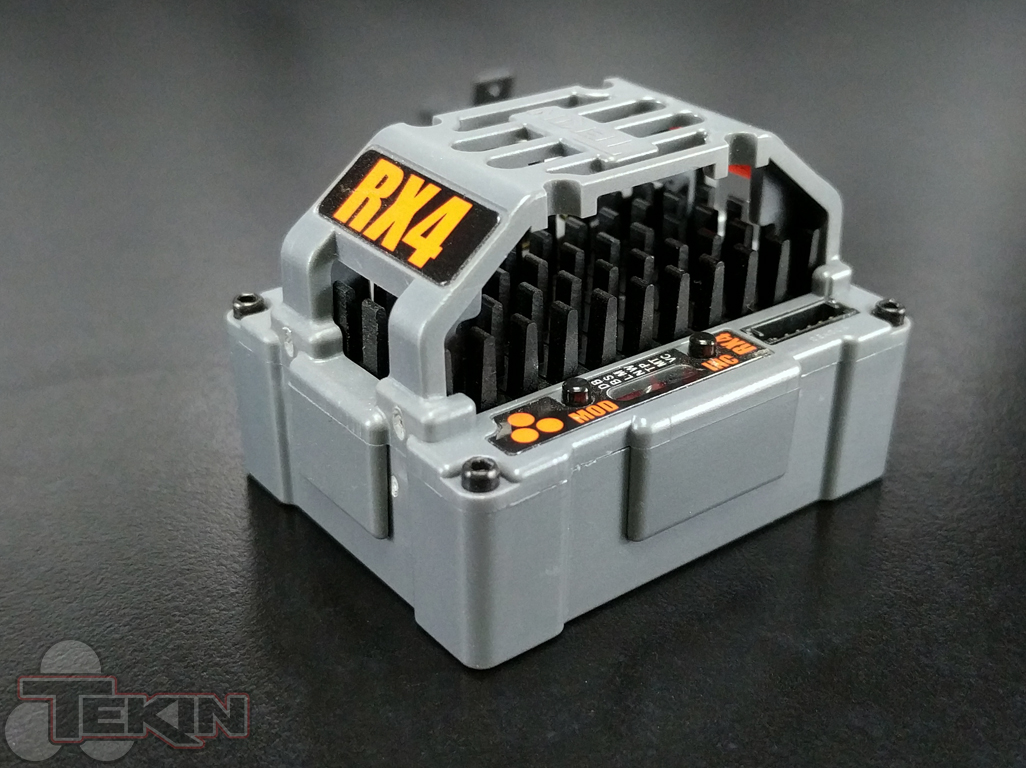

The RX4 Housing is a thick-walled, reinforced Hardbox design able to withstand the elements and rough environments that come with true Offroad adventuring.

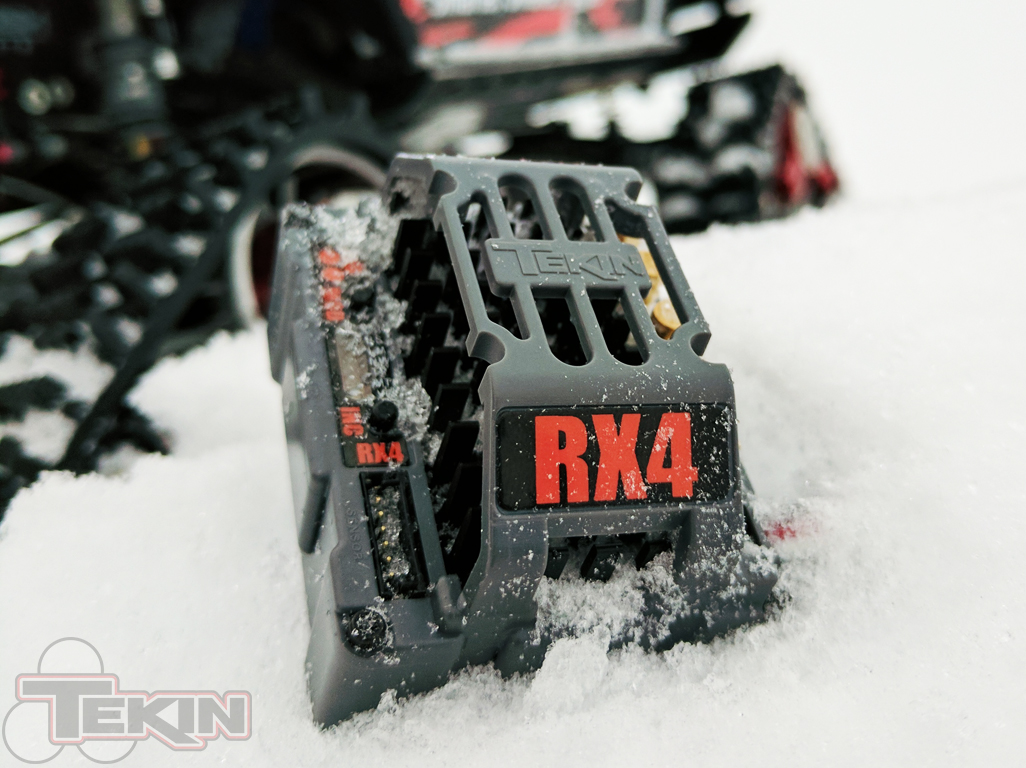

Rocks, Dirt, Snow, Sand, Mud, Trail and Track; the RX4 is no-limits RC fun.



*Waterproof in sensorless operation only. Dielectric Tek Grease provided for waterproofing sensor ports.



Recommended Applications



ROCK CRAWLING

1.9 & 2.2 Trail Adventure

1.9 & 2.2 Rock Race

Controls: Forward/Brake/Reverse

Input Voltage: 2S-4S LiPo / 4-12S NiMH-NiCD

BEC: 6.0v / 7.4v @ 8amps

Motor Limit Brushless Mode: 2S -  4400kV 4-pole

                                              3S -  3100kV 4-pole

                                              4S -  2300kV 4-pole

Motor Limit Brushed Mode: No Limit

Max Current: *240amps per phase

Timing Profiles: 7 choices (on board)

Brushed Modes: FWD Only / FWD-REV / FWD-REV Delay

Brushless Modes: FWD Only / FWD-REV / FWD-REV Delay

Dimensions:  1.6 x 2.0 x 1.4" / 40.6 x 50.8 x 35.5mm

Weight: 2.65oz / 75.5g



*Per Mfg Specs

*HardBox Waterproof Design

Ultra-smooth and Precise Throttle and Braking Control

Compatible with Sensored/Sensorless Brushless and Brushed Motors

Easily Access Programming, Anywhere, Anytime

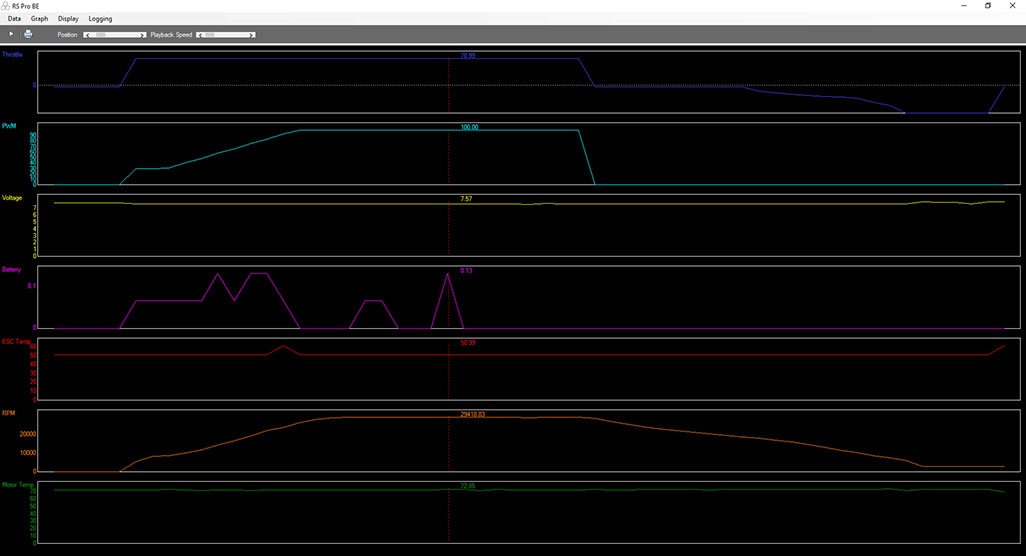

Datalogging Capability

High Voltage Programmable BEC

EZ Access HotWire Programming Port

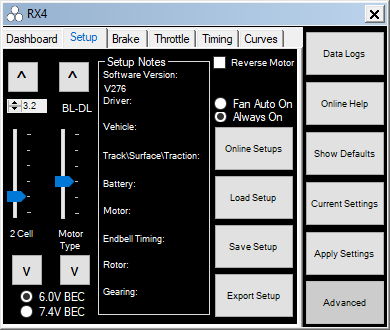

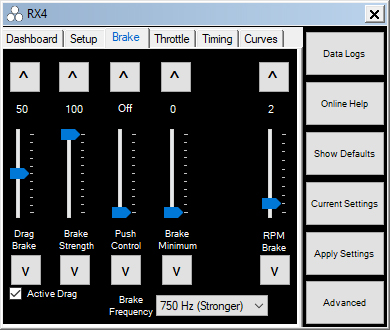

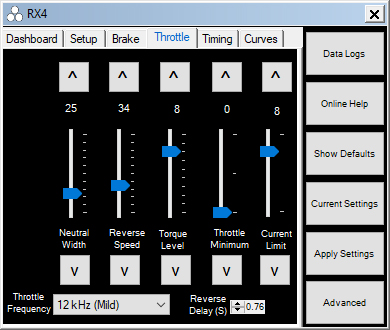

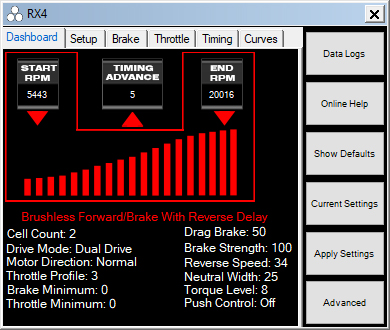

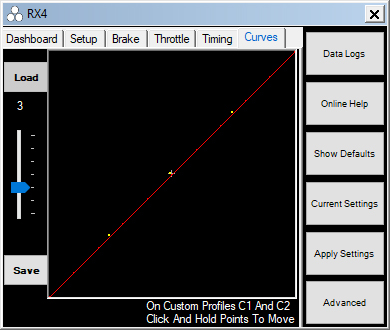

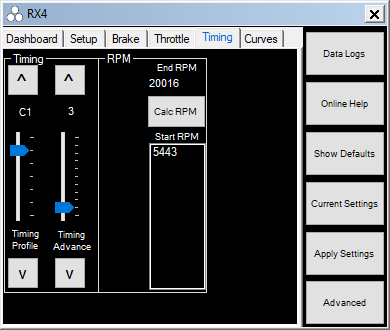

HotWire PC Interface for Advanced Programming and Updating

D2: Dual Drive Mode Technology

On-Board Temperature Indicator

HDAC: High Density Copper PCB

**Sensor Plug for Precise Commutation with all Motors

Gold-plated Solder Posts for Easy Wire Replacement

Self Test Diagnostics and Factory Reset

Pit Tune Mode

DGF2: Digital Glitch Filtering V2

QuickTune™ Programming

One-Touch Radio Calibration



* Waterproof in sensorless operation only. Dielectric Tek Grease provided for waterproofing sensor ports.



**The RX4 is not intended for operation while submerged in liquid.





ESC ONLY



TT2000 - RX4 ESC







CABLES



TT3806 - Tekin Power Switch

TT3808 - Receiver Plug 250mm

TT3809 - Sensor Cable 150mm

TT3810 - Sensor Cable 200mm

TT3811 - Sensor Cable 100mm

TT3813 - Sensor Cable 275mm

TT3825 - GEN2 HotWire Adaptor



ESC FANS



TT3833 - RX4/RSX Fan Pack (2)



CAPACITORS



TT3520 - Power Cap 16V 330uf (2)

TT3522 - Power Cap 16V 1000uf



Tekin FlexWire

Tekin Power Connectors

The RX4 is Trail Ready out of the box but if you plan on encountering any water, you'll need to use the included dielectric grease on the sensor and fan ports. Don't forget the motor sensor port!

Use the included dielectric grease on both sides of the sensor plug on the wire side. This will help keep the pins isolated from each other and prevent shorting through water. Apply grease to the sensor port on the RX4 and plug the sensor wire in.

Should you need the fan, try to avoid as much water as you can as the fan is not waterproof. Apply grease to the fan/data port, wire side of the fan plug and plug the fan into the RX4.
