Tekin's B1 and B1-R bring exceptional brushed technology to mini scale vehicles. The B1 is small, less than 1" square, yet powerful enough to run any micro brushed motor available (up to 380 size). On-Board Temperature Indicator and Lipo cutoffs bring extra safety and highly reliable operation. The B1 has thousands of possible settings right on-board with Tekin's Quick-Tune Programming and is also capable of extensive tuning and updates when used with Tekin's HotWire PC Interface (sold separately). The B1 can be used with NiCd, NiMH and Lipo batteries and is ROCK CRAWLER SAFE for use in rock crawlers with 2S lipo and 540 size 55 turn or higher motors

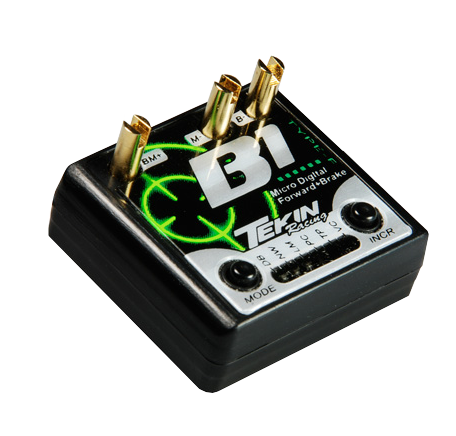

B1

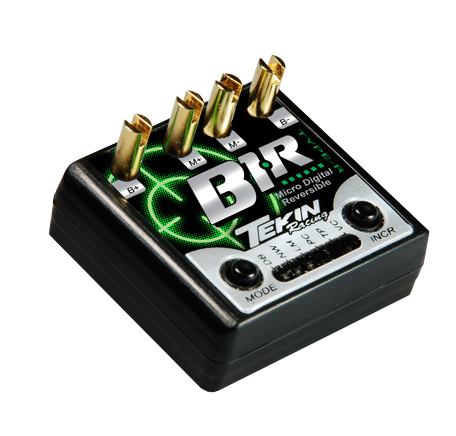

B1-R
Controls: Forward/Brake
Input Voltage: 2S-3S LiPo / 4-9S NiMH-NiCD
BEC: 5.0v @ 2amps
Motor Limit 2S: 35T Brushed 540 / 380 size 20mm
Motor Limit 3S: 55T Brushed 540 Crawler
Throttle Profiles: 7 choices on board
Drag Brake: 11 steps on board
Push Control: 11 steps on board
Brushed Modes: FWD Only w/ Brake
Dimensions: 1.1 x 0.80 x 0.40" / 28 x 20 x 10mm
Weight: 0.36oz / 10.3g
Controls: Forward/Brake/Reverse
Input Voltage: 2S-3S LiPo / 4-9S NiMH-NiCD
BEC: 5.0v @ 2amps **External BEC needed for 3S applications**
Motor Limit 2S: 35T Brushed 540
Motor Limit 3S: 55T Brushed 540 Crawler
Throttle Profiles: 7 choices on board
Reverse Type: None / Immediate / Delay
Reverse Strength: 11 steps on board
Drag Brake: 11 steps on board
Brushed Modes: FWD Only / FWD-REV / FWD-REV Delay
Dimensions: 1.1 x 0.80 x 0.40" / 28 x 20 x 10mm
Weight: 0.37oz / 10.5g
Ultra-smooth and Precise Throttle and Braking Control
Easily Access Programming, Anywhere, Anytime
HotWire PC Interface for Advanced Programming and Updating
On-Board Temperature Indicator
HDAC: High Density Copper PCB's
Gold-plated Solder Posts for Easy Wire Replacement
Self Test Diagnostics and Factory Reset
Pit Tune Mode
DGF2: Digital Glitch Filtering V2
QuickTune™ Programming
One-Touch Radio Calibration
ESC ONLY
TT1080 - B1
TT1081 - B1-R
CABLES
TT3806 - Tekin Power Switch
TT3807 - Receiver Plug 250mm
ESC CASE KITS
TT3823 - B1 Case
TT3824 - B1-R Case
CAPACITORS
TT3518 - Power Cap 16V 180uf (2)
