Pick your line and pass the competition with the Tekin T-300 Servo. Designed to give you the industry’s highest per degree resolution steering and plenty of speed to keep that chassis where you want it. Full Metal Gear set, All Aluminum Housing, Digital Position Encoding and loads of Torque, this servo keeps you in control. Fine-tune your setup with an extensive set of adjustments via Tekin’s HotWire PC Interface.



SPECS

Torque: 8.4  - 7.4  - 6.0V

             354 - 328 - 284 oz/in

             25.5 - 23.6 - 20.5 kg/cm
Dynamic Torque: 8.4  - 7.4  - 6.0V
                              482 - 450 - 380 oz/in

                              34.7 - 32.4 - 27.4 kg/cm
Speed: 8.4  -  7.4  - 6.0V

            0.08 - 0.10 - 0.11sec/60°

Input Voltage: 4.8V-8.4V
Gear Set: Full Metal

Dimensions: 1.57 x 0.79 x 1.57in / 40 x 20 x 40mm

Mounting Height (Base to Mount Tabs): 1.10in / 28.4mm

Weight: 2.53oz / 72g

FEATURES



Digital Magnetic Position Encoder (DPE)

Specifically Designed for 1/10 and 1/8 Scale Applications

Included Aluminum 20mm Crowbar HD Clamp Servo Arm

Full Aluminum Servo Housing

Element Proof Design*

Precision Cut Full Metal Gears

ABEC5 Ball Bearings

High Voltage Capable

High Torque Coreless Motor

25T Output Spline

Programmable via HotWire PC Interface

Overload Protection Technology

Thermal Protection Circuitry

Low Voltage Alarm**

Quiet, Efficient, Cool Operation

HDAC: High Density Copper PCB's



*Tekin Element Proof products are designed to withstand water, snow and mud. Not intended for operation while submerged in liquid.

**requires HotWire sold separately

HOTWIRE™ PROGRAMMABLE FEATURES



Feel - Mild to Aggressive

Speed Limit

Torque (0-100%)

Torque Delay

Direction - Normal / Reverse

Center Point

Travel

Soft Starting Speed & Torque

Max Temp Alarm

Low Voltage Alarm

Over Voltage Alarm

Bind Relief

Fail Safe Speed and Position

Set Custom Servo Name

THE DIFFERENCE IS IN THE DESIGN



Tekin servos are crafted from the highest quality materials available. CNC Precision Cut gears provide an extremely smooth and efficient drive train. 6061-T6 machined aluminum 3-piece o-ring housings provide strength and protection from the elements while the finish quality and design are second to none. Sleek chamfered edges and bold lines combined with a matte anodized finish are sure to accent any build.

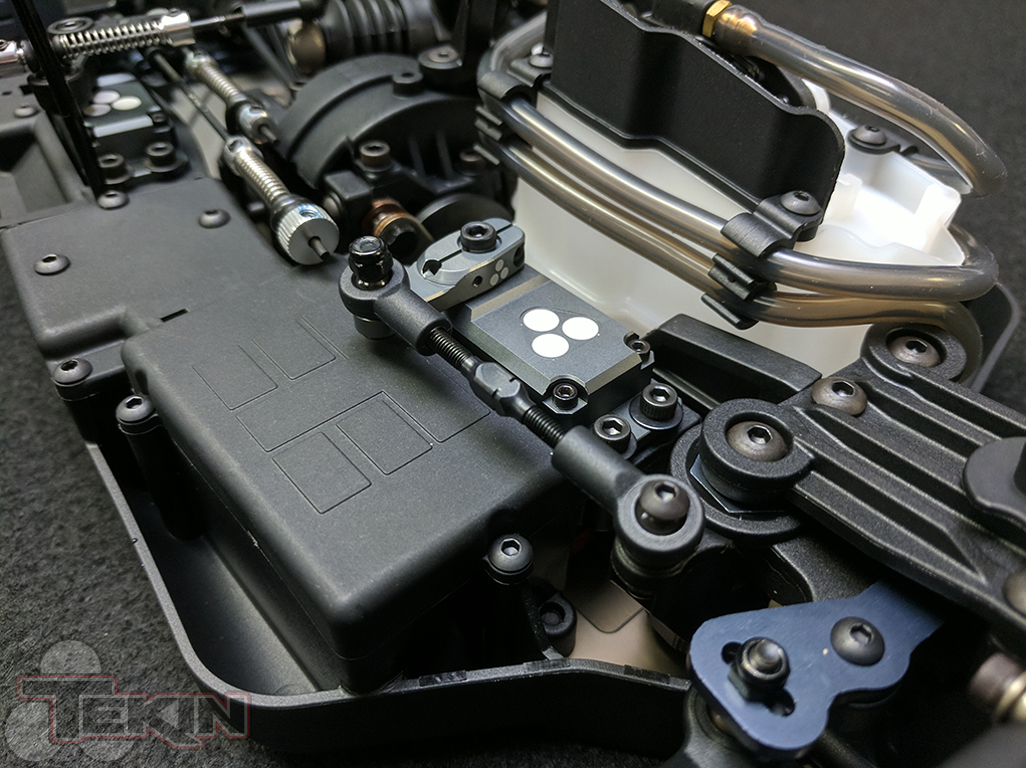

Included with the T-300 Servo is a machined aluminum 20mm Crowbar 25T dual clamping servo arm.




ADVANCED TECHNOLOGY



Digital Magnetic Position Encoder  (DPE)

Our servos use Digital Magnetic Position Encoding (DPE) rather than a standard potentiometer, which gives Tekin servos industry leading accuracy, linearity and consistency.



Accuracy

Precise linear movement through the entire motion range with less than .2 degrees of deviation from start point to end point make Tekin the superior performance product.  Low deviation DPE technology translates to pinpoint accuracy not found in other potentiometer servos, which tend to wander and center poorly and get worse as they age. Tekin is built to last at peak performance.



Linearity

Potentiometer servos can be up to seven degrees non-linear from end point to end point, creating a disconnected feel from your transmitter. Tekin servos eliminate this disconnect, giving you a linear feel and more precise control over your servo movement and position.



Consistency

Performance is important but we are all about consistent performance. Potentiometer performance drifts due to many variables; heat, age, component quality, etc. DPE is a rock-solid, repeatable and consistent technology bringing an unmatched consistency to Tekin servos. Tired of constantly trimming your servo and having response feel different during times of longer usage? Tekin servos are the answer.



Efficiency

Accuracy drives efficiency. A servo that has to work less to center or stop without overshooting position is using less energy. This means less heat build-up, less component fatigue and longer life.



Adaptability

Tekin Servos come with a series of unique features; DPE technology lets you set the center point anywhere, and servo travel limits can be set without reducing the End Point Adjustments (EPA’s) on your transmitter.  Most servos are limited to 90° travel in each direction with a physical stop point; DPE means that Tekin servos can be programmed to travel beyond 360°-- up to 5 full rotations in each direction!



Element Proof

Dependable, no matter the terrain. Element Proof Tekin products are designed to handle water, mud & snow within reasonable restrictions. While we are not afraid to take on the elements, submerging is not recommended.



OUR QUALITY PROMISE



We guarantee our servos to be free from manufacturer defects for 365 days from date of purchase. All items are tested in a controlled environment prior to the packaging process to ensure you receive a top quality Tekin product. We strive to provide the highest grade professional components possible and we appreciate and treat every Tekin user as part of our family. We are RC enthusiasts designing and manufacturing quality products to give our fellow RC enthusiasts the best hobby experience possible.

PART NUMBERS



TT1500 - T-120 LP Speed Servo

TT1501 - T-180 LP Torque Servo

TT1502 - T-130 Speed Servo

TT1503 - T-190 Torque Servo

TT1504 - T250 Standard 1:8 Speed Servo

TT1505 - T300 Standard 1:8 Torque Servo

TT1506 - T360 Standard 1:8 / Crawling Torque Servo

TT1507 - T440 Standard 1:8 / Crawling Torque Servo



SERVO ARMS



TT3902 - 20mm Vector Aluminum Servo Arm Horn 25T

TT3903 - 20mm Crowbar Clamping Aluminum Servo Arm Horn 25T

TT3904 - 24mm Crowbar Clamping Aluminum Servo Arm Horn 25T
