Tekin's SPEC-R brushless motors are professional racing power plants designed to squeeze out every ounce of power available and propel you to the finish line first. Based on the widely popular GEN3 motor platform, the SPEC-R brings new technology to the racetrack. Tekin's ULR (ultra low resistance) design puts top shelf performance in your RC racing vehicle using proprietary specifications and the highest grade materials available for ultra smooth control across a wide powerband. ULR technology and a Yellow High Strength Rotor make the SPEC-R lineup of motors the premium choice for stock racing. Drop a SPEC-R motor in your chassis and leave your competition in the dust.
Available in 21.5T 17.5T, 13.5T and 6.5T, there is a SPEC-R motor available for your racing class. Combine the SPEC-R motors with the RS Pro Black Edition ESC for the ultimate in Ultra Low Resistance systems.
**Please note that the 6.5T SPEC-R is designed for 1/12 Spec classes and should only be used with the RSX PRO speed control.**
x
x
Input Voltage: 1S-2S LiPo
Weight: 5.18oz / 147g
Shaft Dimensions: 3.2mm (1/8") x 15.3mm
Motor Diameter: 35.85mm / 1.40"
Motor Length: 50mm / 1.909"
Bearing Dimensions: Front: 4x13x5mm
Rear: 1/8x3/8x5/32"
Rotor Size: 12.5mm High Strength YELLOW
Rebuildable: Yes
OFF ROAD
1:10 2WD Buggy 17.5T / 13.5T
1:10 2WD Truck 17.5T / 13.5T
1:10 2WD Short Course 17.5T
1:10 4WD Buggy SPEC 13.5T
ON ROAD
1:12 2WD Pan Car 17.5T / 13.5T / 6.5T
1:10 2WD Pan Car 21.5T / 17.5T
1:10 World GT 21.5T
1:10 Formula 1 25.5T / 21.5T
1:10 4WD Touring Car 21.5T / 17.5T / 13.5T
1S LiPo Classes
OVAL
1:10 2WD 17.5T / 13.5T
1:10 SK Car
1:10 Stock Car
1:10 Winged Sprint
1S LiPo Classes
Tekin ULR Ultra Low Resistance Design

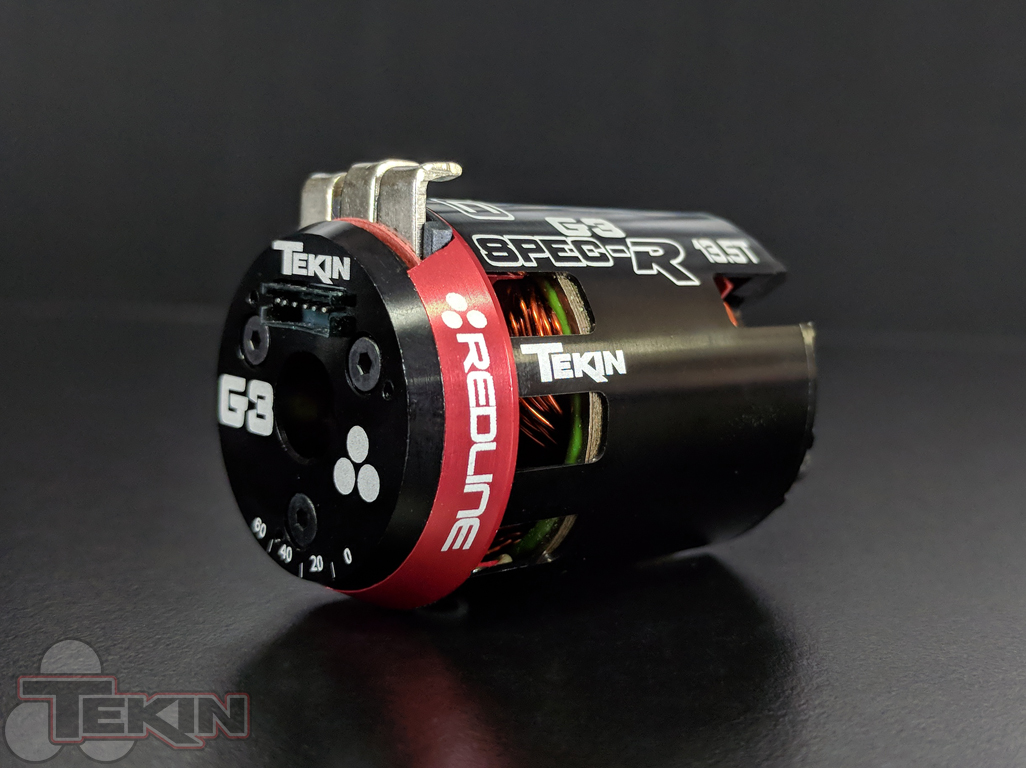

0-60° Adjustable Timing
CNC Machined 6061-T6 Billet Aluminum Heat Sink Can
New Low Resistance High Power Solder Tabs
High Strength Neodymium Sintered Magnet
ABEC5 High RPM Precision Bearings
Precision Engineered for Maximum Energy Conversion
Lightweight Chassis Design
High Purity Copper Windings Maximize Conductivity
Dual-Plug Sensor Wire Harness for all Sensored and Sensorless systems
Anodized End-bell plates maximize corrosion and wear resistance
Rebuild-able Design
Solder-less Sensor PCB replacement
x
MOTOR ONLY
TT2696 - SPEC-R 21.5T
TT2697 - SPEC-R 17.5T
TT2698 - SPEC-R 13.5T
TT2700 - SPEC-R 6.5T 1/12 SPEC
MOTOR PARTS
TT2725 - Redline GEN3 Rebuild Kit:
End Caps / Bearings / Solder Tabs / Isolator / Hardware
TT2726 - Redline GEN3 End Caps / Hardware
TT2728 - Redline GEN3 Sensor PCB
TT2729 - Redline GEN3 Solder Tabs / Isolator
BEARINGS
TT2727 - Redline GEN3 Bearing Set
Front: 4x13x5mm / Rear: 1/8x3/8x5/32"
TT3849 - Redline GEN3 Ceramic Bearing Set
Front: 4x13x5mm / Rear: 1/8x3/8x5/32"
TUNING ROTORS
TT2719 - 12.3mm Spec Rotor - GREY
TT2721 - 12.5mm Spec Rotor - BLUE
TT2722 - 12.5mm Spec Rotor Strong - YELLOW
TT2723 - 13mm Modified Rotor - GREEN
TT2724 - 13mm HT* Modified Rotor - RED
SENSOR CABLES
TT3835 - FlatWire 100mm Ribbon Sensor Cable
TT3836 - FlatWire 150mm Ribbon Sensor Cable
TT3837 - FlatWire 200mm Ribbon Sensor Cable
TT3838 - FlexWire 100mm Sleeved Sensor Cable
TT3839 - FlexWire 150mm Sleeved Sensor Cable
TT3840 - FlexWire 200mm Sleeved Sensor Cable
TT3841 - FlexWire 275mm Sleeved Sensor Cable
FLEXWIRE
TT3009 - FlexWire 12awg Pink 3ft
TT3012 - FlexWire 12awg Red 3ft
TT3013 - FlexWire 12awg Black 3ft
TT3014 - FlexWire 12awg White 3ft
TT3015 - FlexWire 12awg Red 50ft
TT3016 - FlexWire 12awg Black 50ft
TT3017 - FlexWire 12awg White 50ft
TT3018 - FlexWire 12awg Pink 50ft
HOTWIRE
TT1451 - HotWire 2.0
TT1452 - HotWire 3.0 BLE
SHOP NOW
OUR QUALITY PROMISE
We guarantee our motors to be free from manufacturer defects for 180 days from date of purchase. All items are tested in a controlled environment prior to the packaging process to ensure you receive a top quality Tekin product. We strive to provide the highest grade professional components possible and we appreciate and treat every Tekin user as part of our family. We are RC enthusiasts designing and manufacturing quality products to give our fellow RC enthusiasts the best hobby experience possible.
