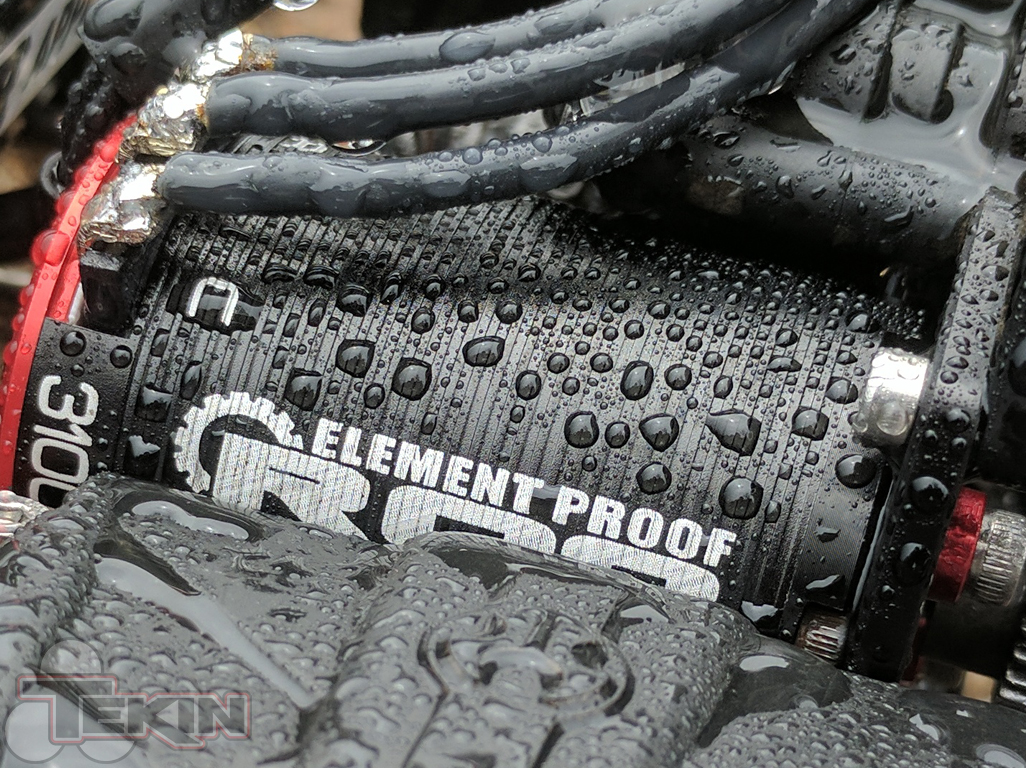

Tekin's Element Proof ROC412 offers protection from the elements, giving you the power to take on the trails or track without fear of water, mud or snow! Designed for heavier trail or rock racing rigs, the ROC 412 delivers more torque and more power on demand. Using a 4-pole 12-slot motor design, the ROC 412 harnesses the benefits of brushless efficiency and extreme amounts of torque to stay on the trail longer with better and more consistent power.
Couple the ROC 412 with an RX4 or RS GEN2 speed control for the smoothest brushless crawling system available. Rock Racing power and Crawling precision are at your disposal.
RECOMMENDED APPLICATIONS
OFF ROAD
1:10 4WD Trail Truck
1:10 4WD Rock Racer
Voltage Limit: 5700kV - 2S
4600kV - 2S
3100kV - 3S
2300kV - 4S
1800kV - 4S
1200kV - 6S
500kV - 6S
Weight: 179g / 6.3oz
Shaft Dimensions: 3.2mm (.125") x 15.3mm
Motor Diameter: 35.85mm / 1.40"
Motor Length: 52.5mm / 2.10"
Max Operating Temperature: 180°F / 82°C
Max RPM: 65,000
Bearing Dimensions: Front: 5 x 14 x 5mm
Rear: 5 x 11 x 5mm
Rotor Size: 18.5mm
Rebuildable: Yes
Mounting Pattern: M3 @ 25.4mm / 1"
Element Proof design tackles Water, Mud and Snow* 18.5mm Rotor provides more Torque and Braking Power 4 Pole 12 Slot Hi-torque Motor Design
CNC Machined 6061-T6 Billet Aluminum Heatsink Can
Crawler, Rock Race and Trail Rig Specific
Neodymium Sintered Magnets
Rebuildable Design
High Purity Copper Windings Maximizes Efficiency
Precision Engineered for Maximum Energy Conversion
Dual-Plug Sensor Wire Harness
High RPM ABEC5 Oversized Bearings
* Element Proof ESCs and Motors are specially designed to withstand water splashes and are not meant to be submerged. Included dielectric grease must be used on the sensor and fan port connections to protect them from shorting.
** The ROC412 EP is not intended for operation while submerged in liquid.
*** Anytime your motor sees water it is important that you perform the proper after run maintenance. Warranty does not cover neglect, lack of maintenance, bearings, rust or any damage that may occur if the motor is submerged in water.
MOTOR ONLY
TT2620 - ROC 412 EP 5700kV
TT2621 - ROC 412 EP 4600kV
TT2622 - ROC 412 EP 3100kV
TT2623 - ROC 412 EP 2300kV
TT2624 - ROC 412 EP 1800kV
TT2625 - ROC 412 EP 1200kV
TT2626 - ROC 412 EP 500kV
MOTOR PARTS
TT2610 - ROC412 EP Rebuild Kit: End Caps / Bearings / Solder Tabs / Isolator / Hardware
TT2611 - ROC412 EP End Caps / Hardware
TT2613 - ROC412 EP Sensor PCB
TT2614 - ROC412 EP Solder Tabs / Isolator
BEARINGS
TT2612 - ROC412 Bearing Set - Front: 5 x 14 x 5mm
Rear: 5 x 11 x 5mm
ROTORS
TT2615 - ROC412 EP Rotor 1/8" Shaft
SENSOR CABLES
TT3835 - FlatWire 100mm Ribbon Sensor Cable
TT3836 - FlatWire 150mm Ribbon Sensor Cable
TT3837 - FlatWire 200mm Ribbon Sensor Cable
TT3838 - FlexWire 100mm Sleeved Sensor Cable
TT3839 - FlexWire 150mm Sleeved Sensor Cable
TT3840 - FlexWire 200mm Sleeved Sensor Cable
TT3841 - FlexWire 275mm Sleeved Sensor Cable
FLEXWIRE
TT3009 - FlexWire 12awg Pink 3ft
TT3012 - FlexWire 12awg Red 3ft
TT3013 - FlexWire 12awg Black 3ft
TT3014 - FlexWire 12awg White 3ft
TT3015 - FlexWire 12awg Red 50ft
TT3016 - FlexWire 12awg Black 50ft
TT3017 - FlexWire 12awg White 50ft
TT3018 - FlexWire 12awg Pink 50ft
HOTWIRE
TT1451 - HotWire 2.0
TT1452 - HotWire 3.0 BLE
OUR QUALITY PROMISE
We guarantee our motors to be free from manufacturer defects for 180 days from date of purchase. All items are tested in a controlled environment prior to the packaging process to ensure you receive a top quality Tekin product. We strive to provide the highest grade professional components possible and we appreciate and treat every Tekin user as part of our family. We are RC enthusiasts designing and manufacturing quality products to give our fellow RC enthusiasts the best hobby experience possible.
